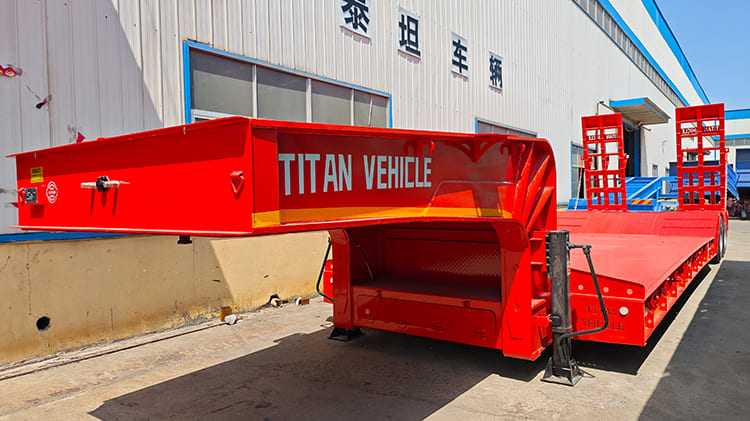

The 2 line 4 axle lowbed trailer is designed with a skeleton featuring a lowered center of gravity, ensuring superior stability on the road. The floor plate minimum height is carefully optimized to align with the terrain conditions of Guam's roadways.
TITAN 4 axle lowbed trailers embody high performance and quality in many aspects, which not only ensures the stability and durability of lowbed trailer truck in harsh environments, but also improves the safety and efficiency of transportation. Through the careful designs and improvements, TITAN lowbed trailer provide customers with higher cost-effectiveness and meet various needs in different operating scenarios.
2 Line 4 Axle Lowbed Trailer Truck for Sale in Guam
2 Line 4 Axle Lowbed Trailer Truck for Sale in Guam
Model: 2 Line 4 Axle Lowbed Trailer
Overall Dimension: 13500mm*3000mm*1700mm
Load Capacity: 80 ton
Floor Plate: 5mm thick pattern plate
Side Beam: 300mm high, 8mm thick
Axles: 4 axles, 13ton
Tire: 16 units, 12R22.5
Ramp: 16mm thickened spring ramp

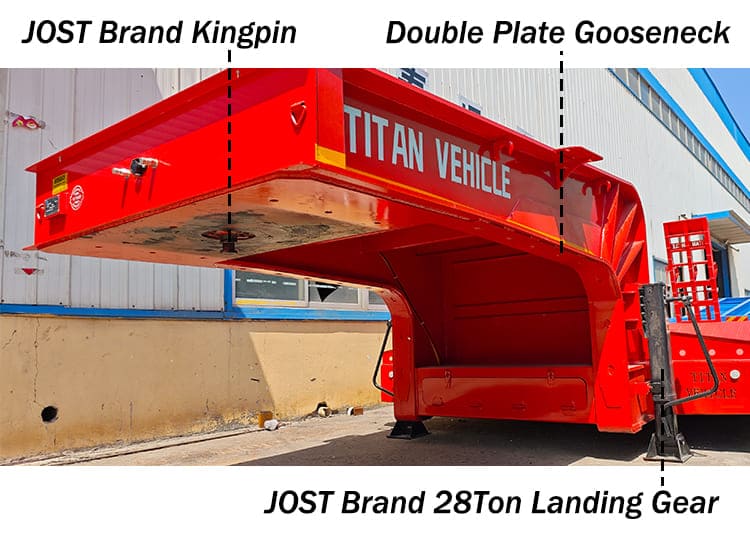

Landing Gear: JOST brand, 28 Ton
Suspension: mechanical suspension
Leaf Spring: 10 layers
TITAN employs a distinctive packaging method that sets apart from other lowbed trailer truck manufacturers. All 4 axle lowbed trailers for sale are treated with a protective spray wax and covered with waterproof raincoats before delivery. The process effectively prevents the lowbed trailer from being damaged by seawater and sea winds during transit. The lowbed trailer truck can be shipped via container, or alternatively can be transported using RORO ships.
The lowbed trailer is powder spray and baking painting. Although the process brings higher production costs, the excellent quality allows Guam customers to enjoy a good value for money after purchasing. Powder spray and baking painting not only keeps the 4 axle lowbed appearance bright, but also ensures the durability of the color.
Compared with ordinary paint, the lowbed trailer truck with Powder spray and baking painting can be used for about five years, which not only avoids the problem of regular repainting due to fading, but also greatly reduces the frequency and cost of maintenance for customers.

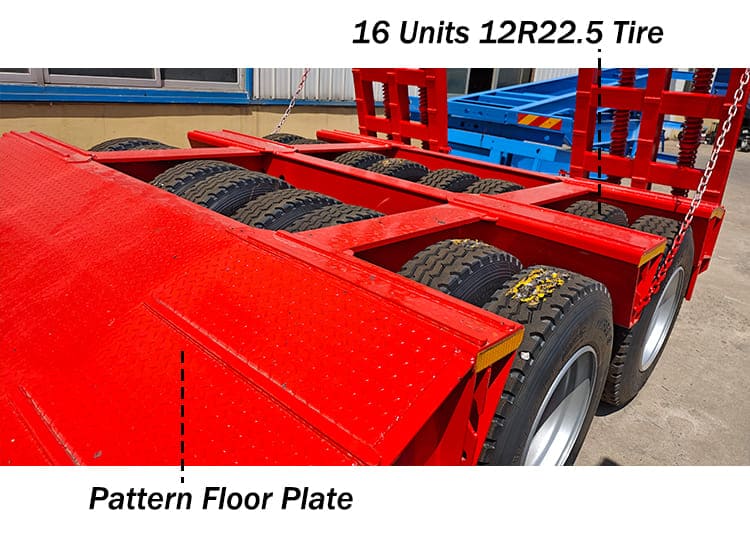

In response to the needs of heavy duty transportation, the lowbed trailer truck adopts a sturdy floor design, which can keep the 4 axle lowbed trailer structure stable and will not deform even under high load conditions. The floor uses a 5mm thick patterned steel plate, which enhances friction and helps reduce the sliding of mechanical equipment during bumpy transportation. The thickened floor plate enhances the support capacity, adapts to complex road conditions including Guam, and ensures the stability of the lowbed trailer during long-term use.
The lowbed trailer is equipped with 12R22.5 tires, which have good load-bearing capacity and can be customized according to the personalized needs of customers. TITAN lowbed trailer fully investigates market demand to ensure the safety, stability and long service life of 4 axle lowbed under specific road conditions. Through such customized design, lowbed trailer trucks can maintain excellent driving performance under various road conditions.
In terms of the braking system, the lowbed trailer truck is equipped with 16-ton brake pads, which greatly improves the braking response speed and can effectively prevent the tire from locking during emergency braking, thereby protecting the tire and extending the service life.
High tonnage brake pads not only increase braking capacity, but also shorten the braking distance, especially in complex road conditions, which can effectively shorten the braking distance by more than 5 meters. The lowbed trailer also uses brake air pipes made of high-pressure rubber, which are more durable than ordinary air pipes and have a long service life of about 10 years, greatly reducing the maintenance frequency in long-term use.

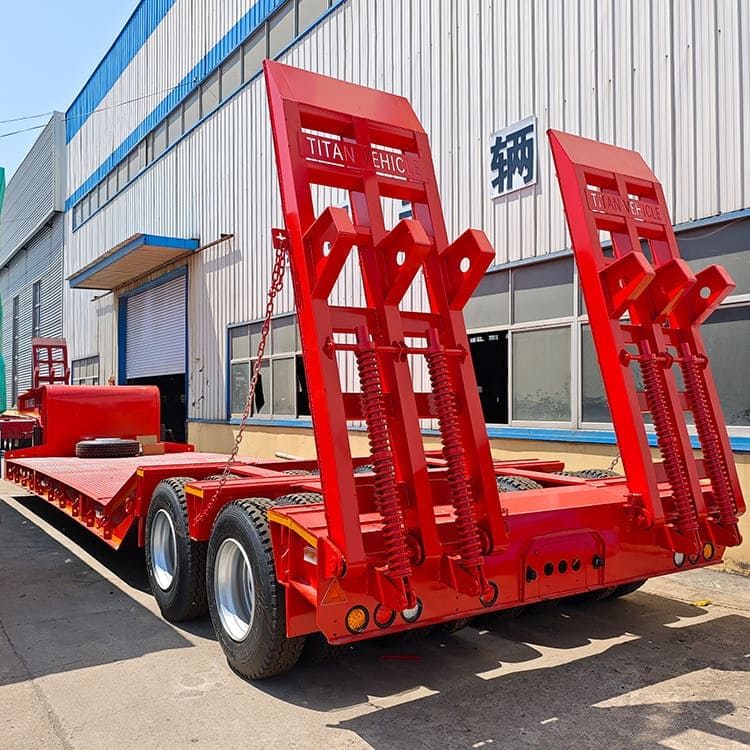

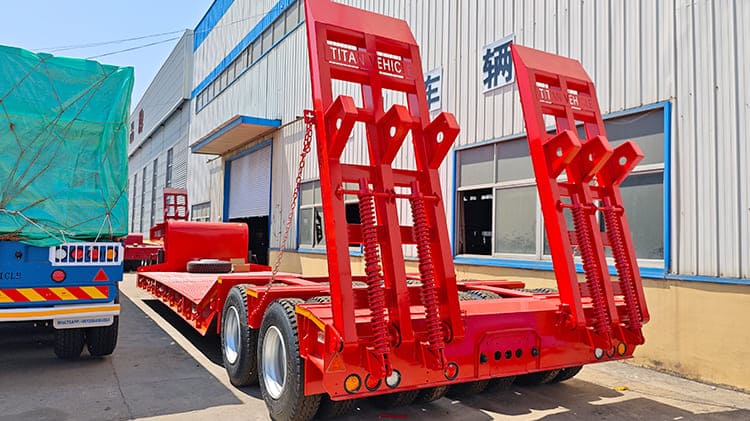

For the loading of heavy equipment, the ramp design at the rear of the lowbed trailer has also been optimized. Customers are usually concerned about whether the ramp at the rear of the 4 axle lowbed can withstand the huge weight of the equipment.

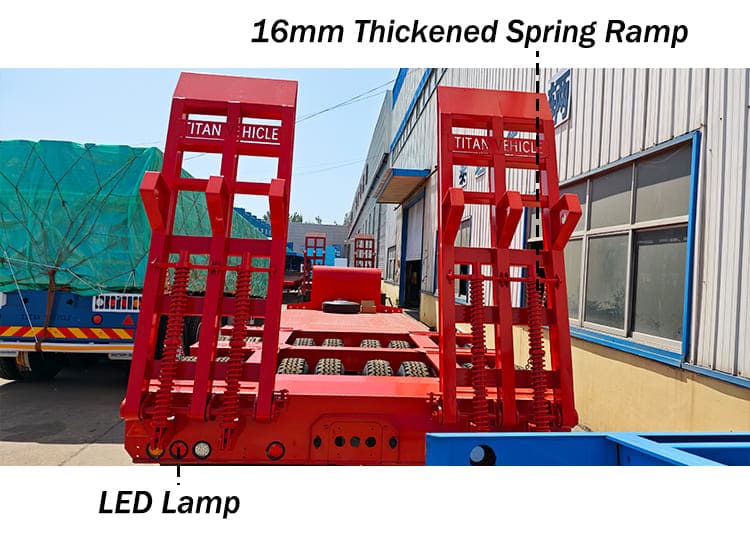

The TITAN 4 axle lowbed trailer is equipped with a 16mm thickened spring ladder, which can provide sufficient support to ensure that heavy equipment is stable and reliable during the up and down process. The spring ramp has a simple structure and is easy to operate. One person can easily complete the up and down operations, which is convenient and efficient.
